| SPECIFICATIONS |
LOA
LWL
Beam
Draft
Displacement
Ballast
Mast Height
Sail Area
Propulsion
Generators
Fuel Capacity
Water
Speed
|
29.30m (96.13 ft)
24.73m (81.10 ft)
6.85m (22.50 ft)
3.50m (11.50 ft)
72.5 tonnes (159,832 lbs.)
26.0 tonnes (57,195 lbs.)
39.62m (130 ft) above DWL
445m2 (4,790 sq. ft.)
Lugger L6108A2, 300hp @2300rpm
Northern Lights
M944K 26kW at 1,500rpm
M844K 12kW at 1,500rpm
6,282 litres (1,660 U.S. gals)
2,340 litres (618 U.S. gals)
12 knots max at 2,300rpm
10.5 knots cruising at 1,800rpm
|
|
Spars : Southern Spars carbon mast,
SouthernFurl carbon boom & spinnaker pole
Rigging : Ocean Yacht Systems
Sailmaker : Doyle Sails, New Zealand
Furling systems : Reckman RF 90-4 R6 hydraulic furler on forestay, SouthernFurl hydraulic furling boom
Winches : All lewmar hydraulic except OnBoard Systems main halyard line system
Propeller : Hundested VP4 FR-ELC-4BC variable pitch
Bow thruster : Lewmar 300SVT, retractable hydraulic bow thruster
Watermaker : HEM 25: 208 litres (55 U.S. gals) per hour
Air-conditioning : Marine Air reverse-cycle
Navigation Electronics : Furuno plus B&G Hercules 2000 Racing Pack sailing instruments
|
|
 |

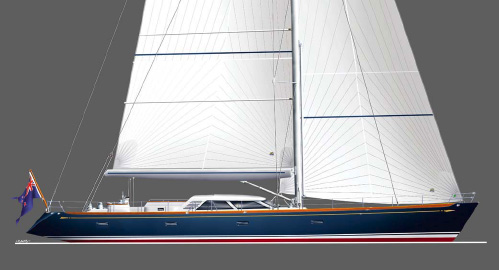

| 29m FRERS PERFORMANCE SLOOP |
Fredericks/Power & Sail of Newport Beach, California, coordinated this build on behalf of an American client and oversaw the project. Designed by the prolific German Frers, the yacht's profile reflects a retrospective departure from his current design philosophy in favor of some traditional elements requested by the client. A graceful sheer, modestly raked stem and elegant teak toe rail contribute to a dramatic visual impact. Following in the wake of Frers notables Unfurled, Ipanema, the Nautor Swan Series and K2, no compromises have been made when it comes to performance. A generous sail plan, moderate displacement and refined hull lines will assure a responsive feel to the helm and fast passages.
Yachting Developments Limited, Auckland, New Zealand, builder of the 2002 International Superyacht Design Award, winner, Silvertip, constructed the yacht in advanced composites. Her teak interior will feature an owner's stateroom aft with two ensuites, two identical guest staterooms, a spacious deckhouse and intimate lower saloon. Southern Spars supplied the carbon fibre mast, and Southern Furl boom, Doyle Sails New Zealand Ltd. is the sailmaker and Electronic Navigation Ltd. of Auckland provided the electronics.
|
